Diamond Light Source shows structure of viruses in unprecedented
18 February 2013
The UK's national synchrotron facility, the Diamond Light Source
has shown the structure of infectious viruses such as AIDS,
hepatitis and some types of flu, at the atomic and molecular level.
This has helped identify the process by which the human enterovirus
spreads throughout cells in the human body.
The Diamond Light Source generates extremely intense pin-point beams of
synchrotron light of exceptional quality and strength, ranging from
X-rays, ultra-violet and infrared. Diamond's X-rays are around 100
billion times brighter than a standard hospital X-ray machine.
This special light allows the study of virus structures at
intense levels of detail and this new facility extends that
capability to many viruses that have a major global impact on human
and animal health. Studying pathogens in this way has the potential
to open up new paths for the development of therapeutic treatments
Presenting at the American Association for the Advancement of
Science (AAAS 2013) in Boston Prof Dave Stuart, Life Sciences
Director at Diamond Light Source and Professor of Structural Biology
at Oxford University, launched the new lab, Crystal, which will
help scientists delve into the inner workings of pathogens and
uncover the mechanisms of infection.
Prof. Stuart said, "Crystal provides unique facilities in Europe
for the study of serious viruses. Nowhere in the world can
structures be so readily solved with the speed and efficiency that
is now available at Diamond. As such, we anticipate interest from a
number of groups in the UK, including the Particle Imaging Centre in
Oxford, which provides a suite of contained laboratories including a
crystallisation laboratory, to support the preparation of sample
prior to study at Diamond. This is great news for the UK research
community, as the facility will be a resource with the potential to
provide new pathways for treatment."
Diamond already has a strong track record of studying viruses at
lower levels of containment. In 2012, scientists determined the
structure of the virus that causes hand-foot-and-mouth disease,
which can cause severe central nervous system disease in children
and poses serious public health threats across the Asia-Pacific
region. Some 1.7 million cases were reported by the Chinese Ministry
of Health during 2010, and there is no vaccine or therapy available.
An Anglo-Chinese collaboration used the facilities at Diamond to
solve the structure of the Human Enterovirus 71 (EV71), which is the
root cause of the disease. Using synchrotron light, the team were
able to visualise the virus in different states and collect a series
of structures, from which they were able to uncover a detailed
picture of the virus's actions in sequence — rather than being a
rigid object, the virus appears to actually "breathe". Such
visualisation requires specialist microscopes ten thousand times
more powerful than standard laboratory microscopes.

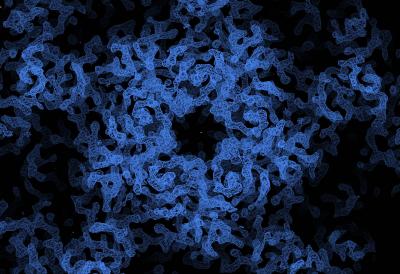

An electron density map of the Human Enterovirus 71 (EV71).
Diamond Light Source & Oxford University
This achievement creates new opportunities for therapies being
developed. Prof Stuart explains, "Together with our Chinese
Colleagues, we have now uncovered the structure of EV71 and
identified the process by which the virus spreads throughout cells
in the human body. These findings can now be used to develop new
treatments for hand-foot-and-mouth; and also directly translated to
other viruses of the same family, including polio and some forms of
the common cold."
The molecular structure of EV71.
Credit: Diamond Light
Source and Oxford University
The solving of hand, foot and mouth virus demonstrates the
potential impact that the new capabilities could have. Crystal at
the Diamond synchrotron enables researchers to rapidly visualise
viruses in their entirety and at incredible scales. The facility's
brilliant beams of X-rays allow scientists to study crystallised
virus particles, and so produce a comprehensive 3D image of the
virus structure. By identifying the virus structure in atomic
detail, scientists can target research into vaccines and anti-viral
The facility is the only one of its kind in Europe and one of
only two in the world. Dr Katherine McAuley, science leader for the
facility concludes, "Crystal is a major advance, not just for the
UK, but for Europe at large. Given the groundwork that has been
performed at Diamond so far on viruses like the hand-foot-and-mouth,
we are introducing a step change in research capabilities, so that
more complex studies can be undertaken in a swift and effective way.
The unique capabilities that the facility offers are expected to
draw scientists from around the world, and establish the nation's
synchrotron as a hub of world-leading research into disease
